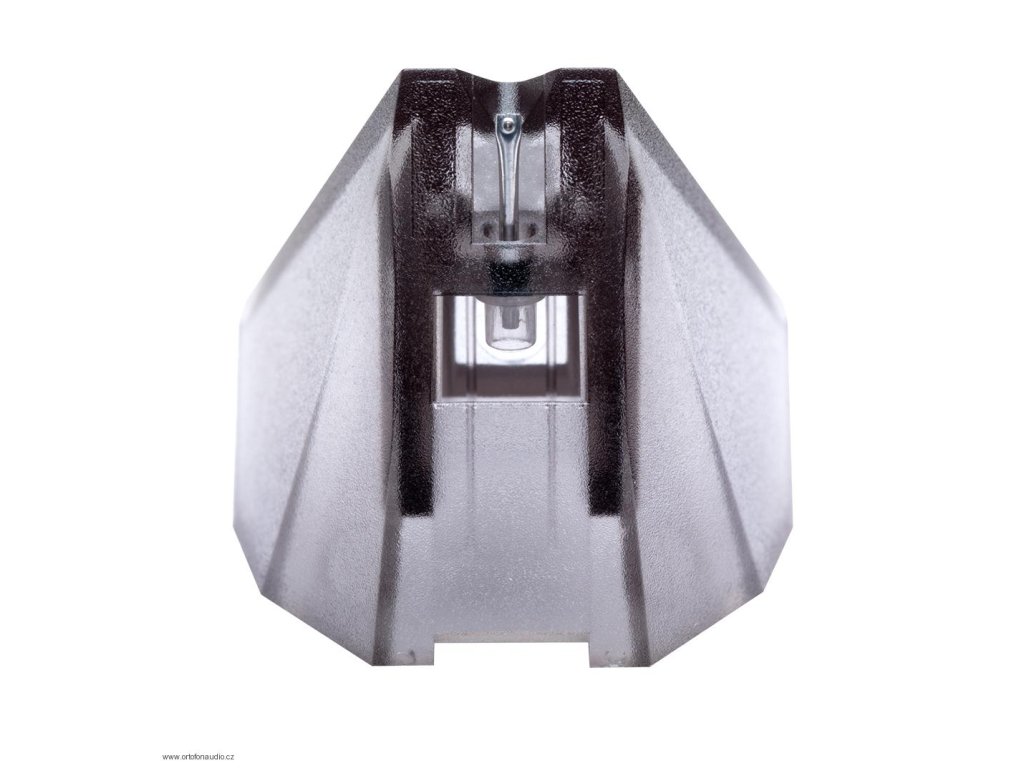

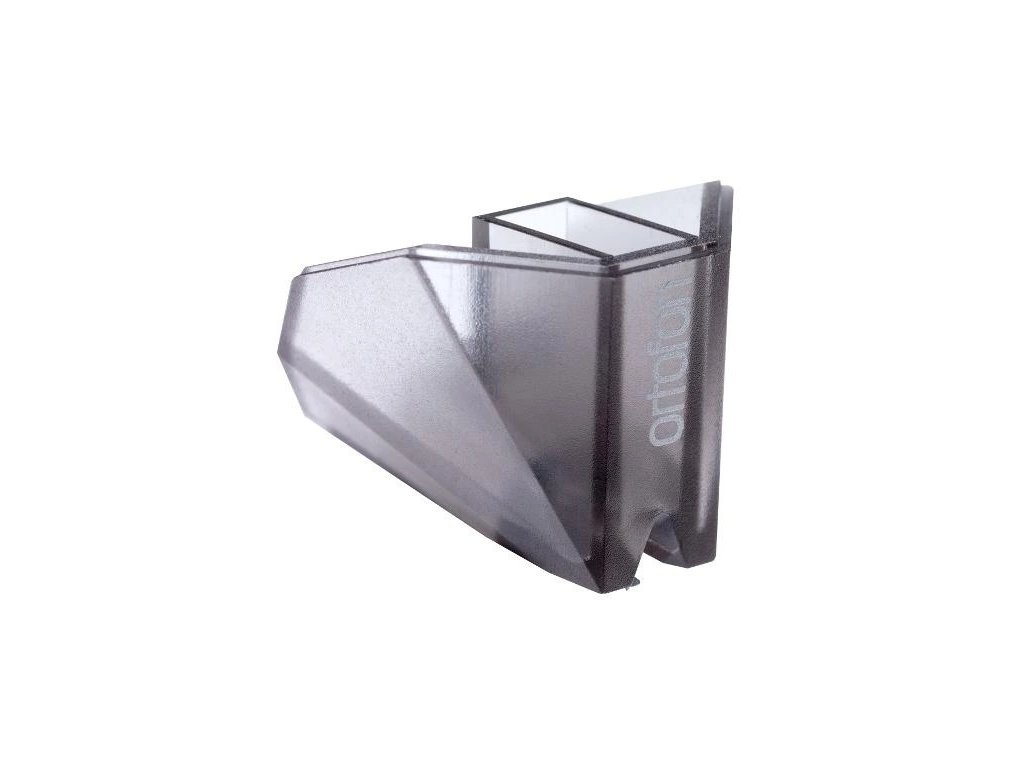

Ortofon Stylus 2M Silver

Detailní popis produktu

Upgrade pro přenosky 2M Red / 2M Red Verso     THE 2M SILVER REPLACEMENT STYLUS IS A GENUINE REPLACEMENT PART FOR ORTOFON 2M SILVER CARTRIDGES       The 2M Silver takes all the characteristics of the most recognised 2M cartridge, the 2M Red, and adds silver spools to the cartridge body; resulting in a new level of sound performance.   By using silver spools in the generator system, the 2M Silver is capable of providing optimal signal generation - giving your records the best possible chance of sounding great.       KEY FEATURES:   • New 2M cartridge• Only supplied with certain Pro-Ject turntables• Silver spools allow for optimal signal generation• Based on the popular 2M Red cartridge• Tipped Elliptical diamond       TECHNICAL DATA:   • Output voltage at 1000 Hz, 5cm/sec.: 5,5 mV• Channel balance at 1 kHz: 1,5 dB• Channel separation at 1 kHz: 22 dB• Channel separation at 15 kHz: 15 dB• Frequency range at - 3dB: 20-22.000 Hz• Frequency response: 20-20.000 Hz + 3 / - 1 dB• Tracking ability at 315Hz at recommended tracking force: 70 µm• Compliance, dynamic, lateral: 20 µm/mN• Stylus type: Elliptical• Stylus tip radius: r/R 8/18 µm• Tracking force range: 1,6-2,0g (16-20 mN)• Tracking force, recommended: 1,8 g (18 mN)• Tracking angle: 20?• Internal impedance, DC resistance: 1,3 kOhm• Internal inductance: 700 mH• Recommended load resistance: 47 kOhm• Recommended load capacitance: 150-300 pF
