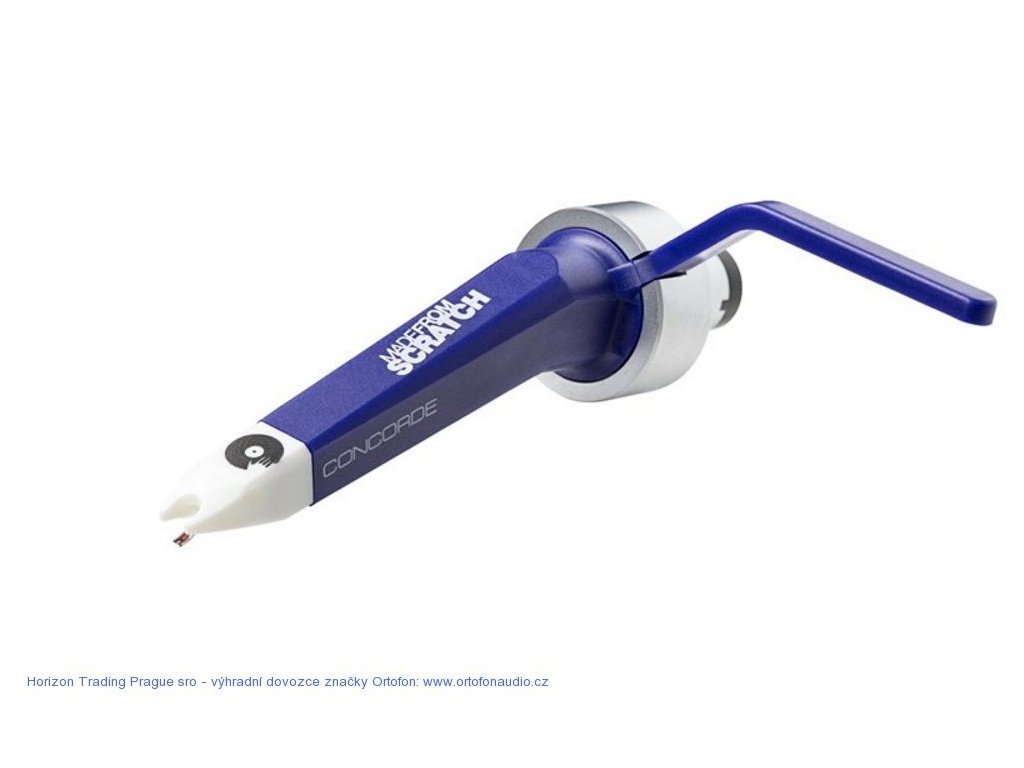

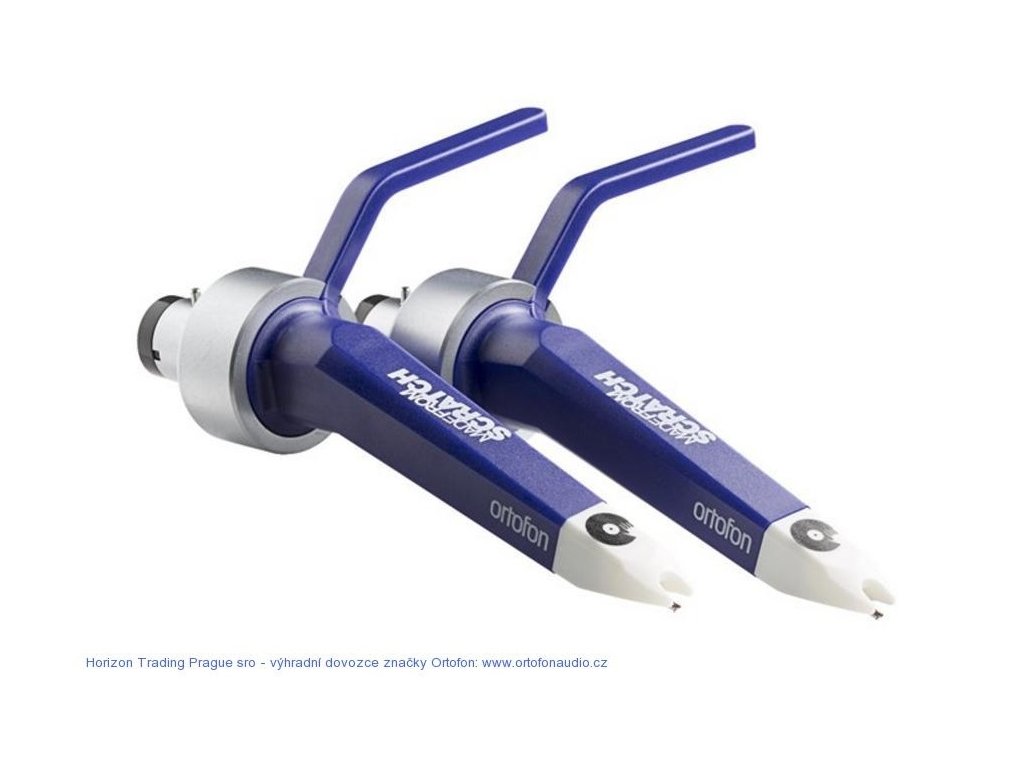

Ortofon Concorde Made From Scratch Twin

Detailní popis produktu

Output voltage at 1000Hz, 5cm/sec. - 7 mVChannel balance at 1kHz -  1,5 dBChannel separation at 1kHz  - 25 dBChannel separation at 15 kHz  - 15 dBFrequency range at -3dB  - 20-20.000 HzFrequency response  - 20-15.000 Hz 3dB/-2dBTracking ability at 315 Hz at recommmende tracking force -  80 μmCompliance, dynamic lateral  -  6 μm/m NStylus type -  SphericalStylus tip radius -  R 18 μmTracking force range -  3,0-5,0 g (30-50 mN)Tracking force recommended - 4,0 g (40 mN) Tracking angle  - 20°Internal impedance, DC resistance -  750 OhmInternal inductance  - 450 mHRecommended load resistance -  47 kOhmRecommended load capacitance -  200-600 pFCartridge weight  - 18,5 g Replacement stylus unit -  Made From Scratch
