NAIM NVC-TT

Detailní popis produktu

• NVC TT is a glorious-sounding phono stage, which is easy and flexible to use. It references previous Naim designs, such as SuperLine, but also our engineering pinnacle – the Statement amplifier. It easily connects to the NSC 222 and NAC 332 pre-amplifiers, offering the very best in elegant vinyl playback.

• - Type: Switchable MM / MC phono stage with MC load adjustment
• - RIAA accuracy: +/-0.1 dB
• - IEC cut: (Partial) – 2 dB at 20 Hz and -3 dB at 14 Hz
• - Cross talk: > 75 dB
• - Max output signal: 8 Vrms
• - Power Supply Input: Type 1

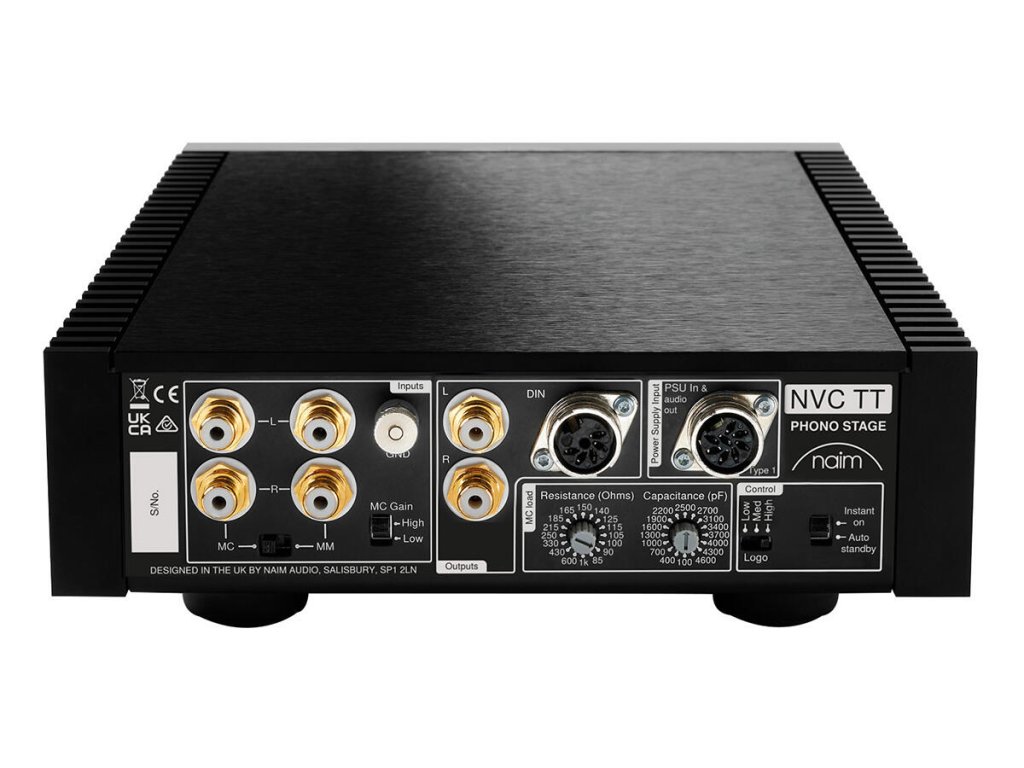

• - Input sockets: Stereo RCA
• - Output sockets: 1x Stereo RCA, 1x 5 pin DIN, 1x 8 pin DIN
• - Power input: +/-18 V DC @300mA
• - MM:
• - Gain: 42dB
• - Signal to noise ratio: 83 dB réf. 5 mV A-wtd
• - THD+N: < 0.005% ref 50 mV input
• - Loading: 47 kΩ and 100 pF
• - Headroom: 22 dB ref 5 mV input
• - MC (low & high gain):
• - Gain: 61 dB low gain and 67 dB high gain (switchable)
• - Signal to noise ratio: 84dB ref 0.5 mV A-wtd (both gain settings)
• - THD+N: < 0.005% ref 1.5 mV input
• - Loading - 16 selectable resistive values: 1000Ω, 600Ω, 430Ω, 330Ω, 250Ω, 215Ω, 185Ω, 165Ω, 150Ω, 140Ω, 125Ω, 115Ω, 105Ω, 100Ω, 90Ω, 85Ω
• - Loading - 16 selectable capacitive values: 100pF, 400pF, 700pF, 1000pF, 1300pF, 1600pF, 1900pF, 2200pF, 2500pF, 2700pF, 3100pF, 3400pF, 3700pF, 4000pF, 4300pF, 4600pF
• - Headroom: 23 dB ref 0.5 mV input low gain setting, 17 dB ref 0.5 mV high gain setting
