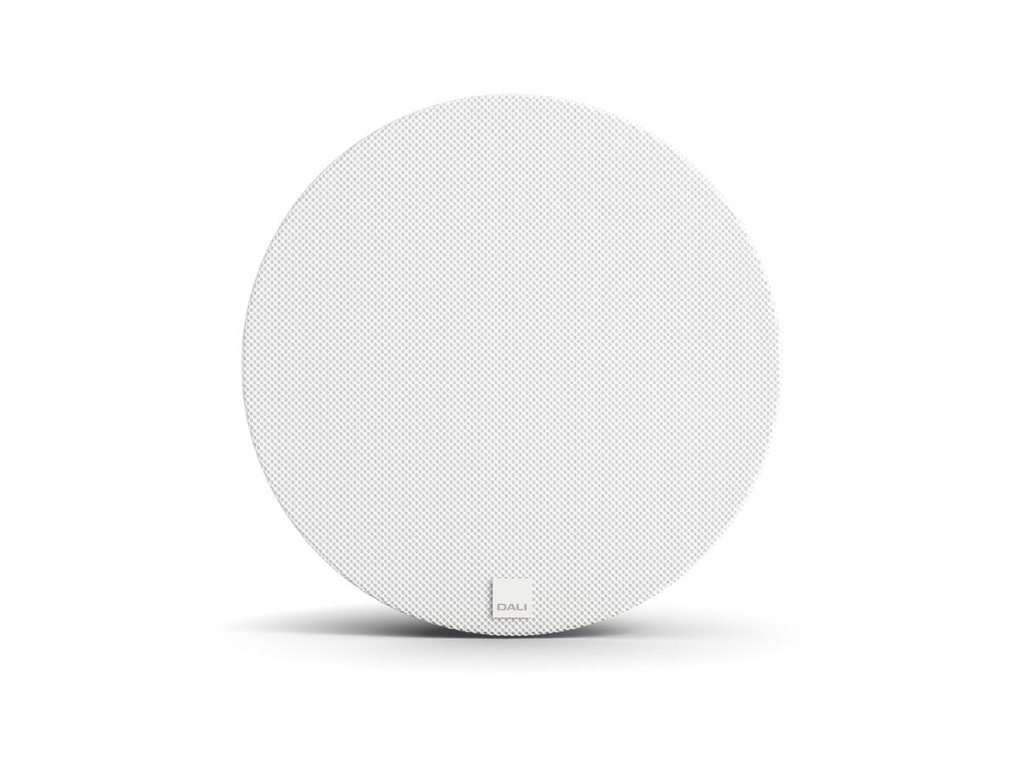

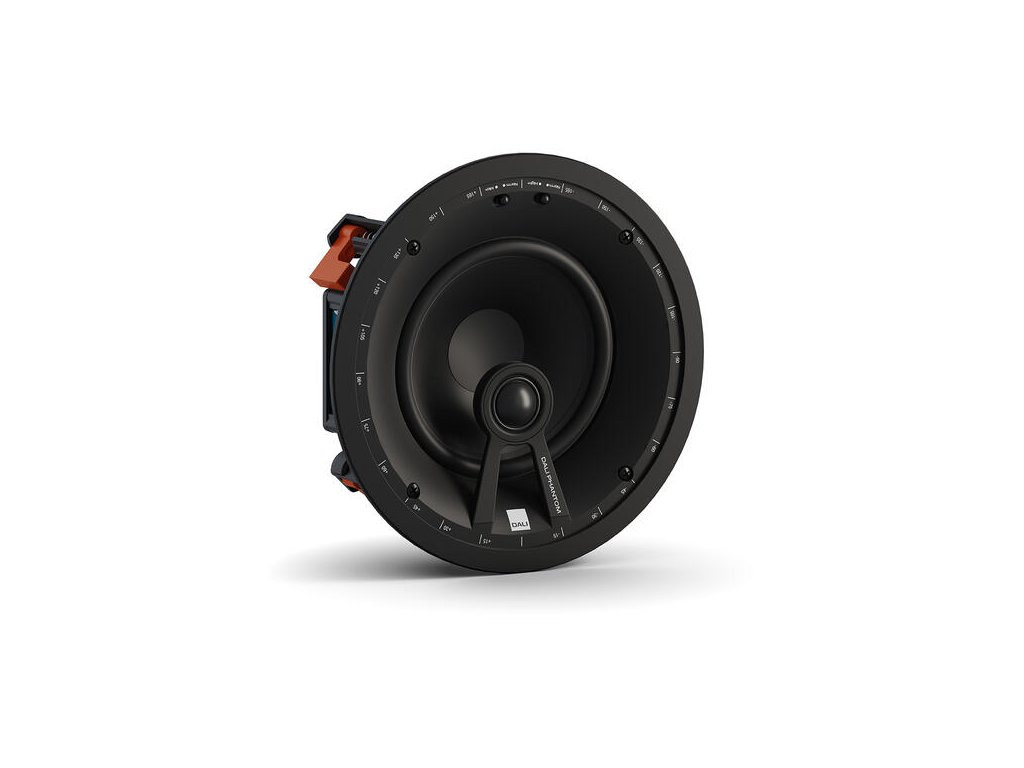

DALI PHANTOM E-60 WR

Detailní popis produktu

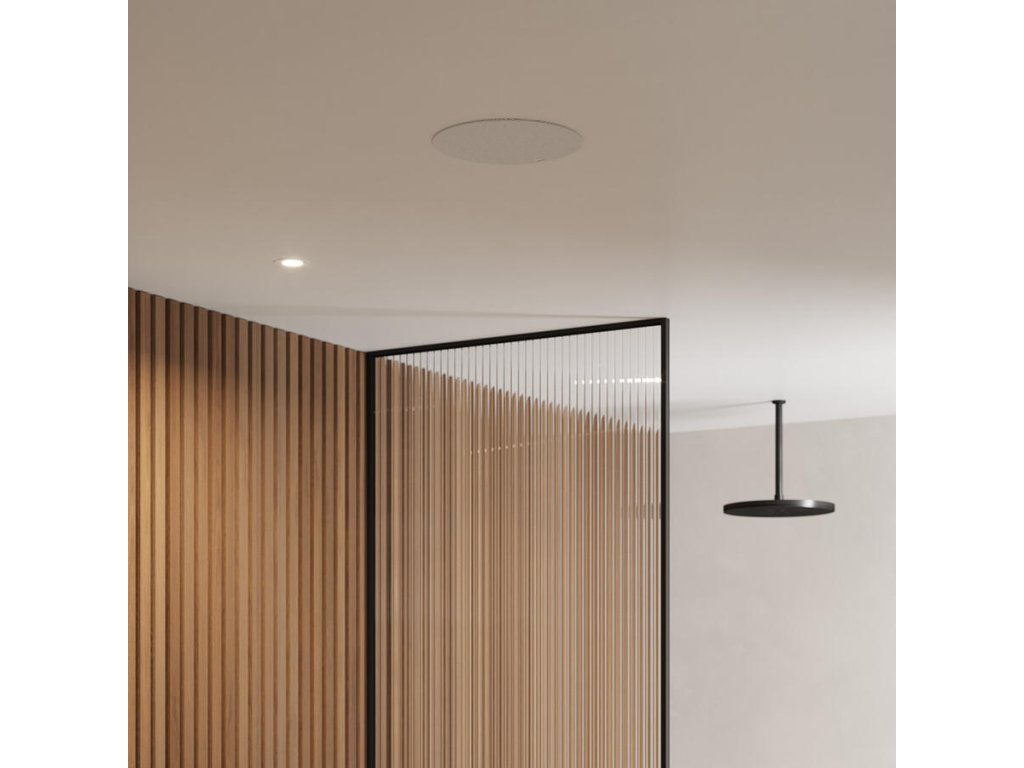

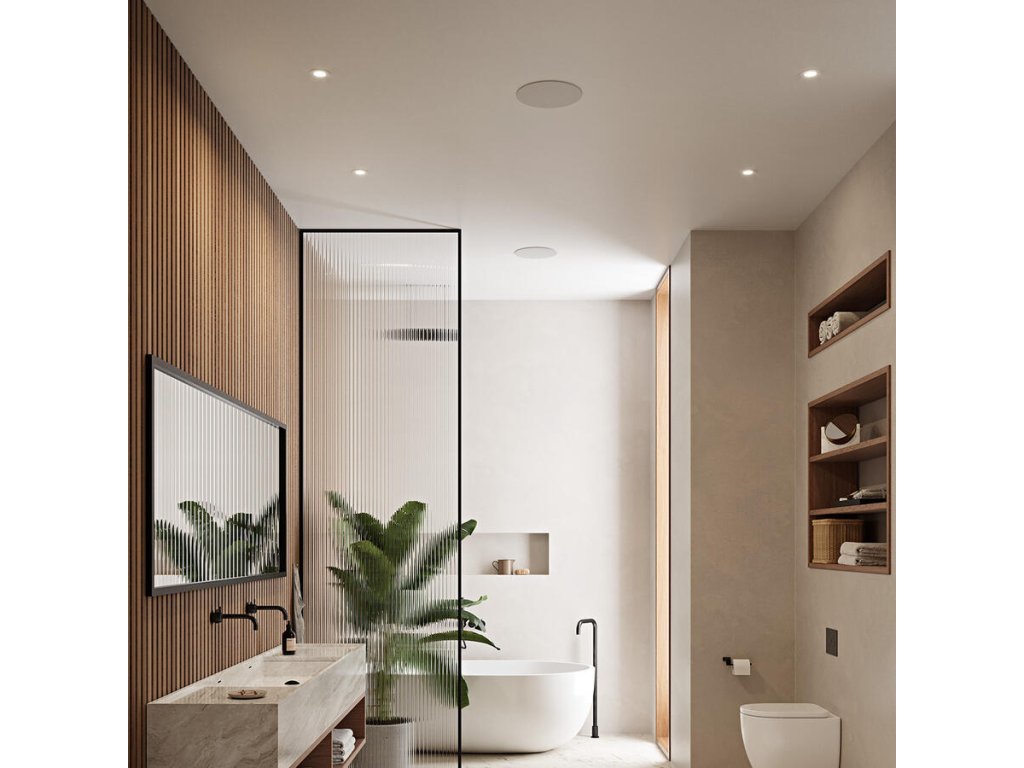

• The PHANTOM E-60 WR and E-80 WR are in-ceiling/in-wall loudspeakers for almost any location and any audio system. Engineered weather resistance and IP65 rated ingress protection makes the E-WR series suitable for high humidity and covered outdoor locations such as bathrooms, and patios. And their wide dispersion DALI designed bass/midrange drivers and 25 mm dome tweeters result in performance appropriate for the widest possible variety of audio systems. E-WR series installation, through swing-out dogleg clamps, requires no specialist tools, and the inclusion of both midrange and high frequency level adjustment (High+ / Mid+) provides unbeatable configuration versatility.

• - Frequency range: 52 - 25,000 Hz ±3 dB
• - Sensitivity: 88 dB @ 1 m for 2.83 V
• - Nominal impedance: 8 Ω
• - Maximum SPL: 105 dB
• - Crossover frequency: 3,300 Hz
• - Crossover principle: 2-way
• - Recommended amplifier power: 30 - 120 Watt
• - High frequency driver: 1x 25 mm soft dome
• - High frequency diaphragm: Soft woven fabric
• - Low / Mid frequency driver: 1x 6½"
• - Low / Mid frequency diaphragm: Polypropylene
• - Connection input: Single wire
• - Enclosure type: Open back
• - Other features: Normal / High+, Normal / Mid+, Galvanized grille
• - Installation location: In-ceiling / In-wall
• - Recommended placement: Ceiling / Front / Centre / Surround
• - IP rating: IP65
• - Outer dimensions incl. grille (H x W x D): Ø 258 x 104 mm
• - Outer dimensions excl. grille (H x W x D): Ø 242 x 100 mm
• - Cut-out dimensions: Ø 225 mm
• - Mounting depth: 96 mm
• - Recommended rear volume (backbox): 5 - 50 litres
• - Optimum rear volume: 15 litres
• - Ceiling/wall thickness (total dog-leg span): 10 - 70 mm
• - Weight incl. grille: 2 kg
• - Shipping weight: 3 kg
• - Finish: White
• - Accessories: Manual, Cut-out template, Front grille, Logo badge
• - Optional accessories: Pre-construction Kit PHANTOM UNIVERSAL 25 backbox
